Application
l Splices of directly buried low voltage cables;
l Insulation of cables up to 0.6/1 kV,both in straight and split splices derivation,with total tightness;
l Primary electrical insulation for bus bar connections rated up to 35kV;
l Protection of connectors and other metal parts against weather and action UV rays;
Product Features
l Self-fusing solution for demanding sealing and insulation needs;
l Weathering and corrosion resistance;
l Excellent formability ;
l Tight waterproof sealing;
l Resistance to Ozone;
l Resistance to UV ray;
l Thick construction allows quick application;
l Excellent performance at 90℃degree,and withstanding of short-term overload temperature up to 130℃;
l Installation temperature:-20~40℃.
Technical Properties
Item | Min. value | Test method |
Thickness | Thickness ≥1.65mm |
ASTM D 1000 |
Tensile strength | ≥1.03MPa | ASTM D4325 |
Elongation at break | ≥500% | ASTM D412 |
Adhesion | Steel ≥30N/50mm | ASTM D 1000 |
Dielectric Breakdown | ≥12kV/mm | ASTM D4325 |
UV Resistance | Pass | ASTM-D-4388 |
Specification
Model | Length x Width |
EJPYM165BK-3000 | 3000mmx200mm |

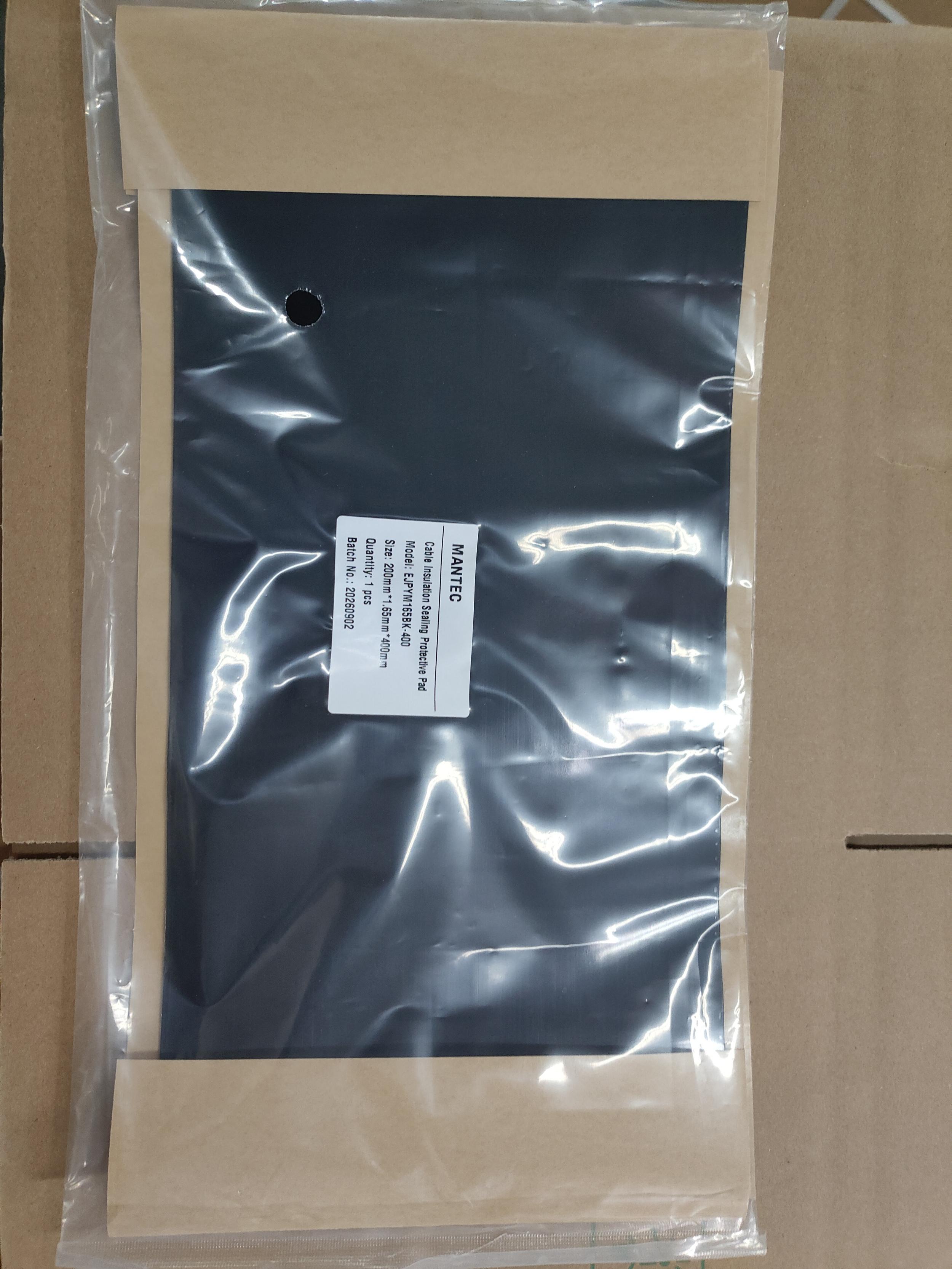

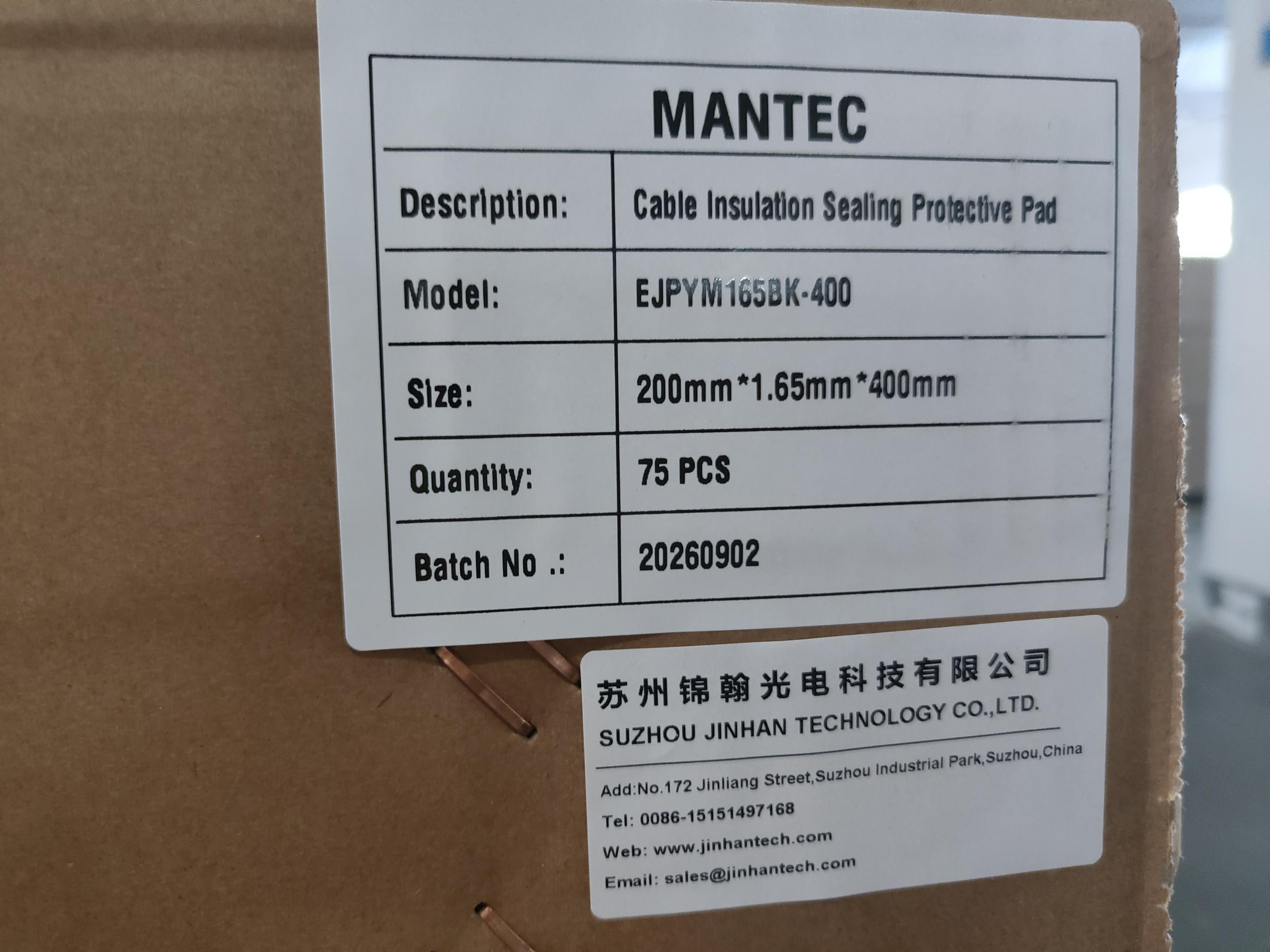

EJPYM165BK-0400 | 400mmx200mm |
*Other sizes and packing are available on requested.
Shelf life and Storage
Jinhan guarantees this product for 3 years,as long as it is stored in their original packaging in a dry and ventilated place (between 0℃ and 30℃)and with relative humidity of up to 75%
